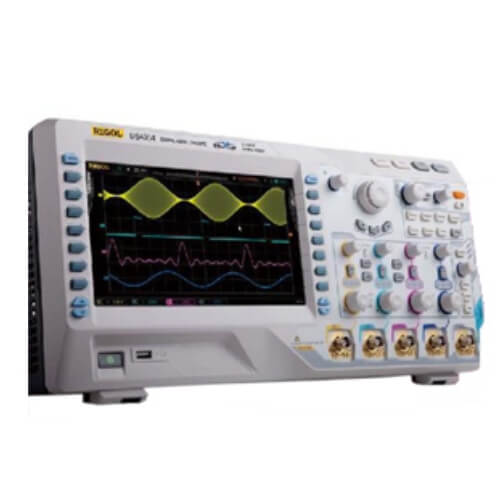

MSO/DS4000 series is the new mainstream digital scope to meet the customer’s applications with its innovative technology. MSO4000 has 2+16 or 4+16 channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.

Features

• Bandwidth: 500 MHz, 350 MHz, 200 MHz, 100 MHz
• Real-time Sample Rate: analog channel up to 4 GSa/s, digital channel up to 1 GSa/s (MSO)
• Standard Memory Depth: analog channel up to 140 Mpts, digital channel up to 28 Mpts (MSO)
• 2 or 4 analog channels, 16 digital channels (MSO)
• Waveform capture rate up to 110,000 waveforms per second
• Hardware real-time waveform record, playback and analysis functions (standard up to 200,000 frames)
• Lower noise floor, the minimum vertical sensitivity is 1mV/div
• Innovative “UltraVision” technology
• A variety of trigger and bus decoding functions (both analog and digital channels)
• Supports bandwidth update for 200 MHz and 350 MHz bandwidth models
• Complete Connectivity: USB HOST&DEVICE, LAN (LXI-C), VGA, AUX, USB-GPIB (optional)
• 9 inch WVGA (800×480), 256 level intensity grading display
